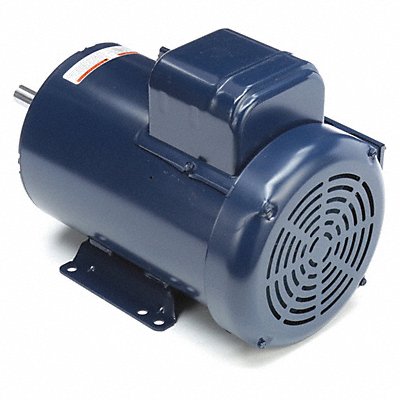

Motor 5 HP 3 530 rpm 184JM 230V
Manufacturer: MARATHON MOTORS
Jahnda Part Number: 87K05A
EA
Description
Close-Coupled Pump Motor Bolt Circle Dia 5 7/8 in Conduit Box Position F1 Duty Cycle Continuous Frame 184JM Hz 60 Hz Full Load Amps 19.8 Height 11 5/16 in HP 5 Ins. Class F Inverter Rated No Length Less Shaft 14 5/16 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design Capacitor-Start/Run Motor Efficiency Group Standard Efficient Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 90.0 lb |
| Items per Unit of Issue | 1 |
| UNSPSC | 26101602 |
| UNSPSC Segment | 26 |
| UNSPSC Family | 2610 |
| UNSPSC Class | 261016 |
| Country of Origin (subject to change) | Mexico |
