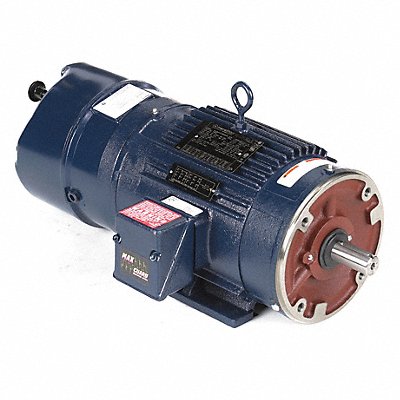

Motor 5 HP 1750 rpm 184TC 230/460V

Vector Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 750 No of Speeds 1 Voltage 230/460V AC Full Load Amps 13.4/6.7 A 184TC Frame Torque 25 ft-lb Max Speed 5 400 RPM Speed Range 2 000 1 Usable @ 208V No Usable @ 200V No 60 Hz Hz Max Operating Frequency 120 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW
