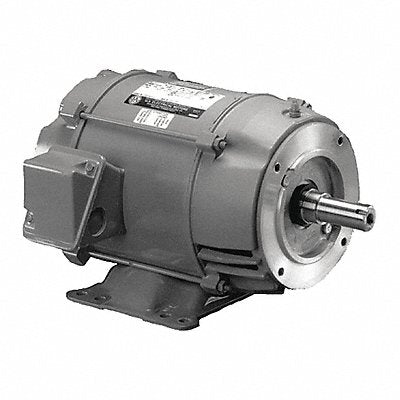

Motor 3PH 75HP 3600 230/460V ODP VFD
Manufacturer: U.S. MOTORS
Jahnda Part Number: 68M28K
EA
Description
Motor Three Phase Motor Design 3-Phase 75 HP Nameplate RPM 3 560 No of Speeds 1 Voltage 230V 460V Full Load Amps 170.0/85.0 A 364TS Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed Removable Base Regreasable Bearings Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 580.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
