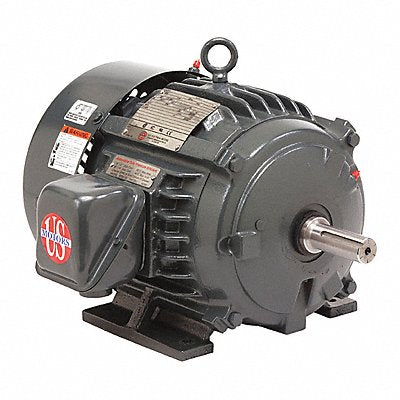

Motor 3PH 75HP 1800 575V TE HD
Manufacturer: U.S. MOTORS
Jahnda Part Number: 40D18K
EA
Description
Motor Three Phase Motor Design 3-Phase 75 HP Nameplate RPM 1 785 No of Speeds 1 Voltage 575V Full Load Amps 68.0 A 365T Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed Removable Base Regreasable Bearings
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 890.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
