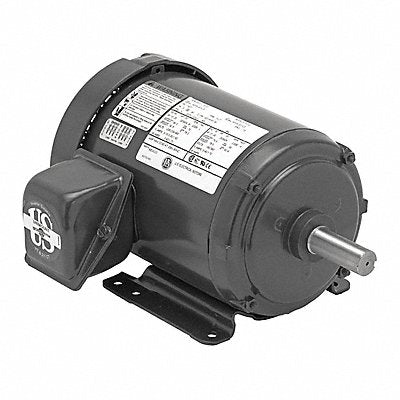

Motor 3PH 7.5HP 3600 230/460V TE TC FTL
Manufacturer: U.S. MOTORS
Jahnda Part Number: 49Y99N
EA
Description
Motor 3-Phase Totally Enclosed Motor Enclosure Design 7 1/2 HP Nameplate RPM 3 525 Frame 213TC Voltage 208-230/460V 60 Hz Hz Three Phase Full Load Amps 19.9-17.9/9.0 A Horizontal Footless Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 89.5 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 105.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
