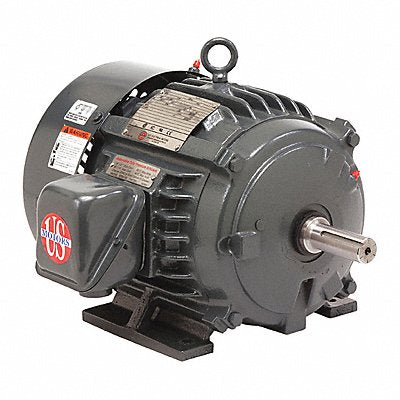

Motor 3PH 7.5HP 1800 230/460V TE VFD CT
Manufacturer: U.S. MOTORS
Jahnda Part Number: 17Z48K
EA
Description
Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 780 No of Speeds 1 Voltage 230V 460V Full Load Amps 21.1/10.5 A 213T Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class H NEMA Design A Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Removable Base Regreasable Bearings
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 160.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
