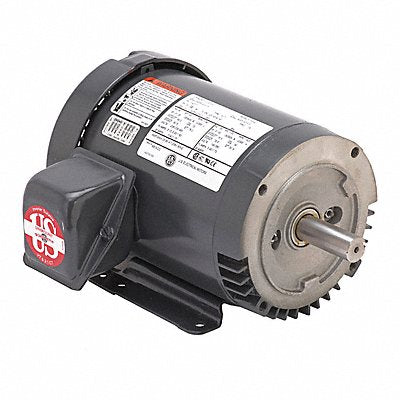

Motor 3PH 7.5/3.75HP 2 SPD 460V EFF 84
Manufacturer: U.S. MOTORS
Jahnda Part Number: 35Y99N
EA
Description
Motor 3-Phase Totally Enclosed Motor Enclosure Design 3 3/4 7 1/2 HP Nameplate RPM 1 770/885 Frame 254T Voltage 460V 60 Hz Hz Three Phase Full Load Amps 9.6 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Aluminum Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 84 Percent CSA Certified UR
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 190.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
