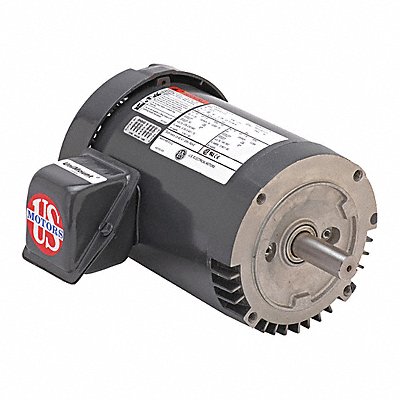

Motor 3PH 7.5/1.875HP 2SPD 460V EFF 87.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 51W38K
EA
Description
Motor Three Phase Motor Design 3-Phase 1 7/8 7 1/2 HP Nameplate RPM 1 765/875 No of Speeds 2 Voltage 460V Full Load Amps 9.5 A 213T Frame Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Motor Shaft Design Keyed Removable Base Regreasable Bearings Motor Frame Material Aluminum
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 102.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
