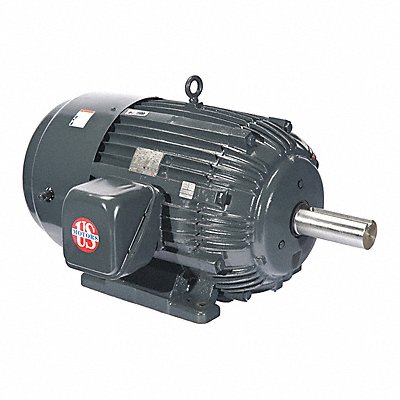

Motor 3PH 600HP 1800 2300/4000V EFF 96.2
Manufacturer: U.S. MOTORS
Jahnda Part Number: 24Y99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 600 HP Nameplate RPM 1 785 Frame 5012S Voltage 2 300/4 000V 60 Hz Hz Three Phase Full Load Amps 137.0/79.0 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 96.2 Percent CSA
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 6000.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
