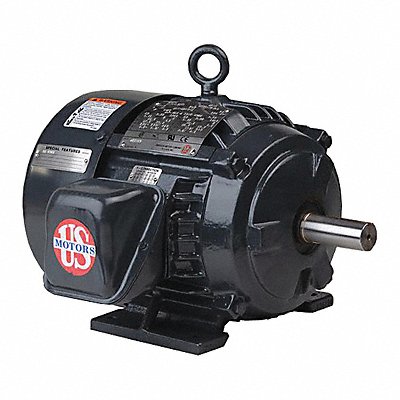

Motor 3PH 5HP 3600 460V EFF 87.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 06O48K
EA
Description
Motor 5 HP Nameplate RPM 3 600 Voltage 460V Full Load Amps 6.3 A 213 Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 149 Degrees F Ins. Class F NEMA Design B Removable Base Regreasable Bearings Motor Frame Material Cast Iron
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 150.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
