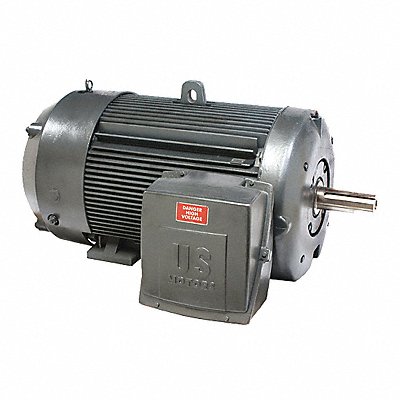

Motor 3PH 5HP 3600 208-230/460V EFF 88.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 10K58K
EA
Description
Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 3 520/2 885 No of Speeds 1 Voltage 190V 208-230/460V 380V Full Load Amps 13.4-12.2/6.1 A 184TC Frame Usable @ 208V Yes Hz 60/50 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footless Motor Mounting Position Horizontal Inverter Rated Yes
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 110.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
