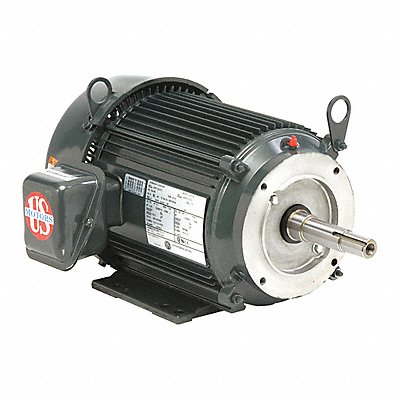

Motor 3PH 5HP 1800 575V TE JM
Manufacturer: U.S. MOTORS
Jahnda Part Number: 24K98K
EA
Description
Close Coupled Pump Bearing Protection Shaft Shields Body Dia 9.6 in Bolt Circle Dia 9/16 in Conduit Box Position F1 Duty Cycle Continuous Frame 184 Hz 60 Hz Full Load Amps 5.0 Height 9 1/4 in HP 5 Ins. Class F Length Less Shaft 14 5/16 in Max Ambient Temp 40 Degrees C Max SF Amps 6.2 Motor Application Centrifugal Pump Motor Design 3-Phase Motor Efficiency Group Premium Efficient Motor Enclosure Design Totally Enclosed Motor Frame Material Aluminum
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 70.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
