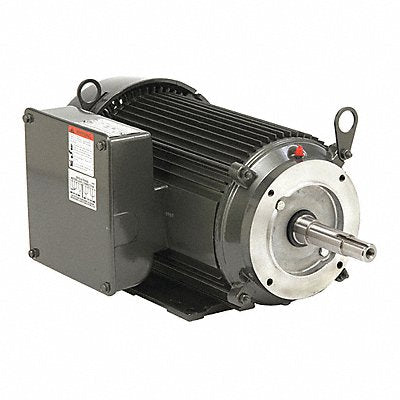

Motor 3PH 5HP 1800 230/460V ACCU-Torq
Manufacturer: U.S. MOTORS
Jahnda Part Number: 13O09K
EA
Description
Motor 3PH 5HP 1800 230/460V ACCU-Torq Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 770 rpm No of Speeds 1 Voltage 230/460V Full Load Amps 13.9/7.0 A 184 Frame Torque 531 ft-lb Max Speed 1 770 RPM 60 Hz Hz Max Operating Frequency 60 Hz Motor Service Factor 1 Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Motor Mounting Type Horizontal Footed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 83.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
