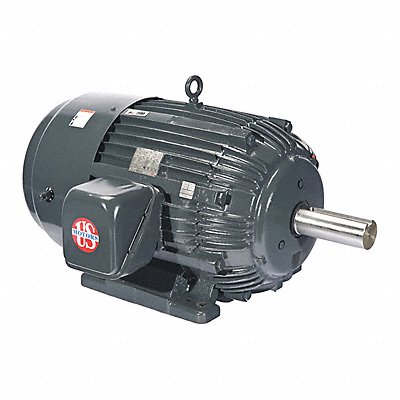

Motor 3PH 5HP 1800 208-230/460V EFF 89.5

Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 755/1 435 No of Speeds 1 Voltage 190V 208-230/460V 380V Full Load Amps 13.7-12.5/6.3 A 184TC Frame Usable @ 208V Yes Hz 60/50 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footless Motor Mounting Position Horizontal Inverter Rated Yes
