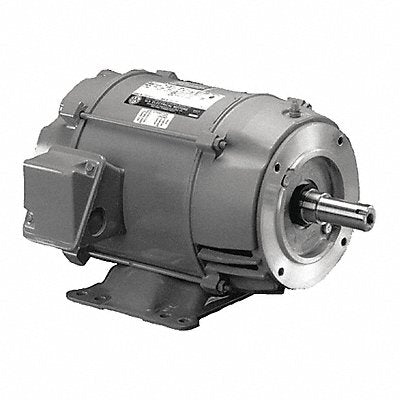

Motor 3PH 5HP 1200 575V EFF 89.5

Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 170 No of Speeds 1 Voltage 575V Full Load Amps 5.7 A 215T Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Shaft Design Keyed Removable Base Regreasable Bearings Motor Frame Material Steel
