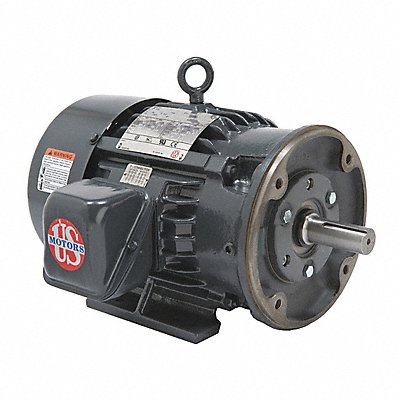

Motor 3PH 5HP 1200 200V TE HD
Manufacturer: U.S. MOTORS
Jahnda Part Number: 63V99N
EA
Description
Motor 3-Phase Totally Enclosed Motor Enclosure Design 5 HP Nameplate RPM 1 170 Frame 215T Voltage 200V 60 Hz Hz Three Phase Full Load Amps 15.9 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 89.5 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 150.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
