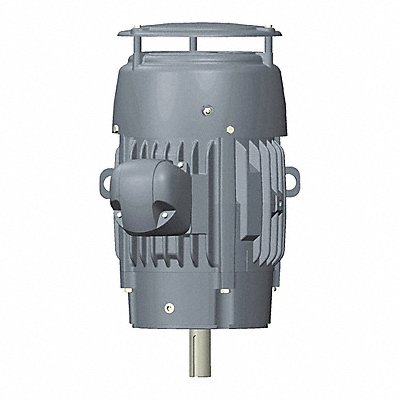

Motor 3PH 50HP 3600 460V TE SD
Manufacturer: U.S. MOTORS
Jahnda Part Number: 41M08K
EA
Description
Motor Three Phase Motor Design 3-Phase 50 HP Nameplate RPM 3 555 No of Speeds 1 Voltage 460V Full Load Amps 56.0 A 326TS Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed Removable Base Regreasable Bearings Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 555.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
