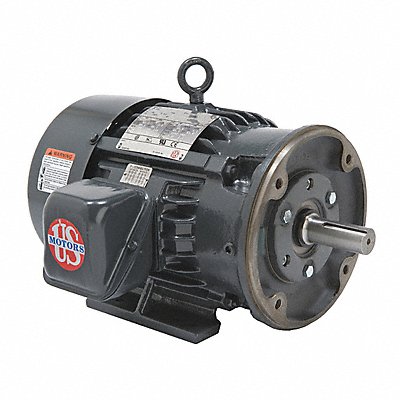

Motor 3PH 50HP 1800 230/460V TE VFD CT
Manufacturer: U.S. MOTORS
Jahnda Part Number: 99X99N
EA
Description
Motor Three Phase Motor Design 3-Phase 50 HP Nameplate RPM 1 800/2 700 Voltage 230/460V Full Load Amps 116.0/58.0 A 326T Frame Hz 60 Hz Max Ambient Temp 104 Degrees F Ins. Class H NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Inverter Rated Yes Removable Base Regreasable Bearings Motor Frame Material Cast Iron
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 650.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
