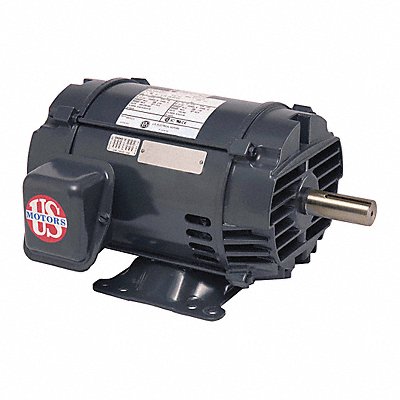

Motor 3PH 50HP 1200 230/460V ODP VFD
Manufacturer: U.S. MOTORS
Jahnda Part Number: 93X99N
EA
Description
Motor 3-Phase Open Dripproof Motor Enclosure Design 50 HP Nameplate RPM 1 185 Frame 365T Voltage 230V 460V 60 Hz Hz Three Phase Full Load Amps 117.0/59.0 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F Nominal Efficiency 94.1 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 580.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
