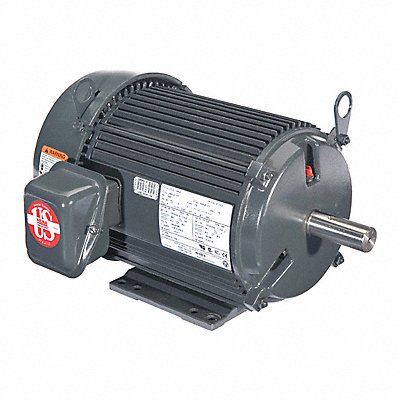

Motor 3PH 3HP 3600 200V TE ST FR
Manufacturer: U.S. MOTORS
Jahnda Part Number: 23X28K
EA
Description
Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 3 495 No of Speeds 1 Voltage 200V Full Load Amps 8.3 A 145T Frame Usable @ 200V Yes Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design A Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 35.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
