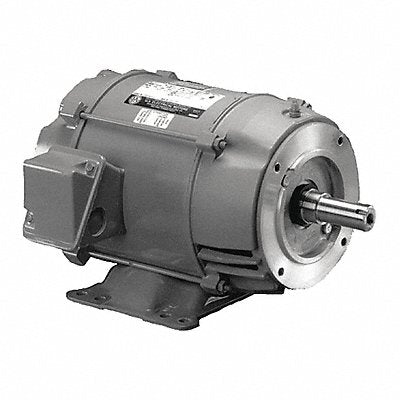

Motor 3PH 3HP 208-230/460V ODP JM FTL

Close Coupled Pump Bearing Protection Shaft Shields Body Dia 8 in Bolt Circle Dia 5 7/8 in Duty Cycle Continuous Frame 182JM Hz 60/50 Full Load Amps 8.3-7.7/3.8 Height 9 9/16 in HP 3 Ins. Class F Length Less Shaft 11 3/4 in Max Ambient Temp 40 Degrees C Max SF Amps 9.5-8.6/4.3 Motor Application Damp Dusty or Dirty Environments Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft Motor Bearings Ball Motor Design 3-Phase
