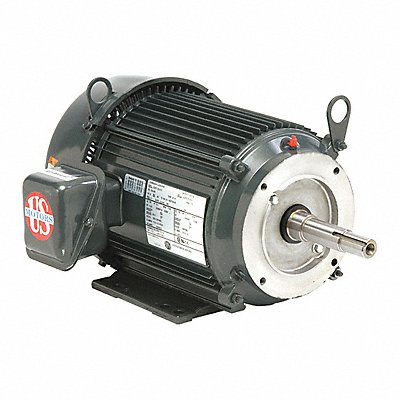

Motor 3PH 3HP 1800 575V EFF 87.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 13V99N
EA
Description
Motor 3PH 3HP 1800 575V EFF 87.5 Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 770 rpm No of Speeds 1 Voltage 575V Full Load Amps 4.1 A 182 Frame Torque 583 ft-lb Max Speed 1 770 RPM 60 Hz Hz Max Operating Frequency 60 Hz Motor Service Factor 1 Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 65.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
