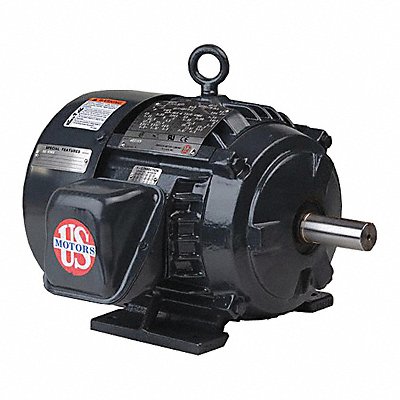

Motor 3PH 3HP 1200 208-230/460V TE ST FR
Manufacturer: U.S. MOTORS
Jahnda Part Number: 40X68K
EA
Description
Motor Three Phase Motor Design 3-Phase 3 HP Nameplate RPM 1 180 No of Speeds 1 Voltage 208-230/460V Full Load Amps 9.2-8.6/4.3 A 213T Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 130.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
