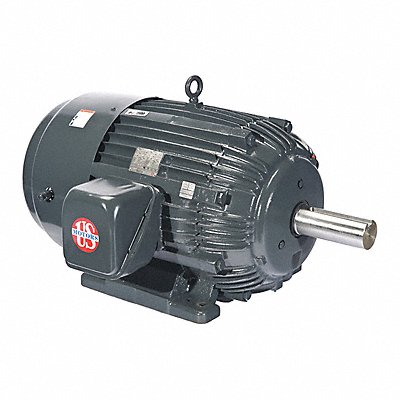

Motor 3PH 350HP 1800 2300/4000V EFF 95
Manufacturer: U.S. MOTORS
Jahnda Part Number: 47V99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 350 HP Nameplate RPM 1 790 Frame 5010S Voltage 2 300/4 000V 60 Hz Hz Three Phase Full Load Amps 81.0/46.0 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Nominal Efficiency 95 Percent CSA
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 4800.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
