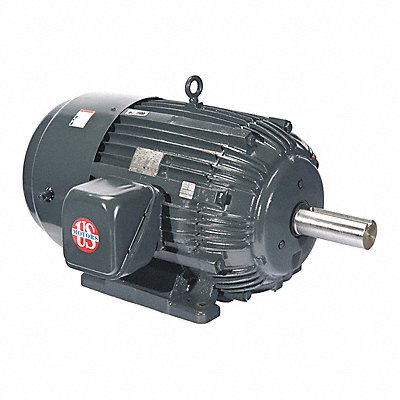

Motor 3PH 30HP 3600 460V EFF 91.7
Manufacturer: U.S. MOTORS
Jahnda Part Number: 02V99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 30 HP Nameplate RPM 3 560/2 940 Frame 286TSC Voltage 380V 460V 60/50 Hz Hz Three Phase Full Load Amps 34.0 A Horizontal Footless Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 91.7 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 410.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
