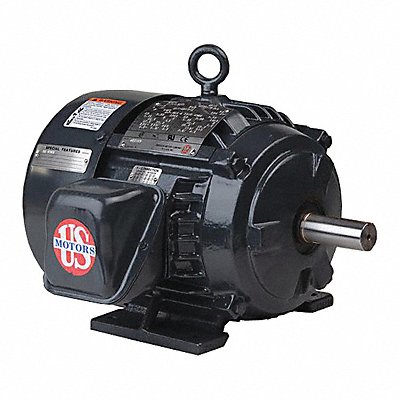

Motor 3PH 30HP 3600 460V EFF 91
Manufacturer: U.S. MOTORS
Jahnda Part Number: 01V99N
EA
Description
Motor Three Phase Motor Design 3-Phase 30 HP Nameplate RPM 3 565 No of Speeds 1 Voltage 460V Full Load Amps 34.0 A 326US Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Motor Shaft Design Keyed Removable Base Regreasable Bearings
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 625.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
