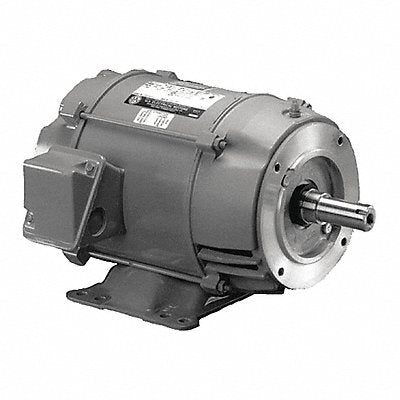

Motor 3PH 30HP 3600 208-230/460V ODP JP
Manufacturer: U.S. MOTORS
Jahnda Part Number: 46X99N
EA
Description
Close Coupled Pump Bearing Protection Shaft Shields Body Dia 12.4 in Bolt Circle Dia 11 in Conduit Box Position F1 Duty Cycle Continuous Frame 284JP Hz 60/50 Full Load Amps 79.0-68.0/34.0 Height 15 7/16 in HP 30 Ins. Class F Length Less Shaft 20 1/2 in Max Ambient Temp 40 Degrees C Max SF Amps 94-80.0/40.0 Motor Application Damp Dusty or Dirty Environments Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 225.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
