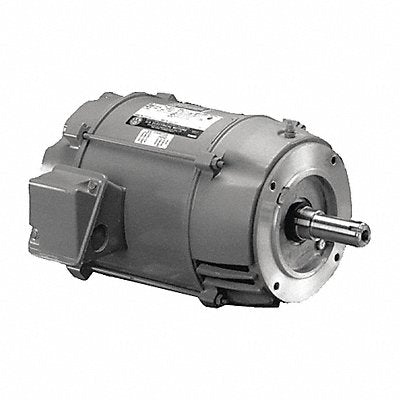

Motor 3PH 30HP 3600 208-230/460V ODP
Manufacturer: U.S. MOTORS
Jahnda Part Number: 59E48K
EA
Description
Motor Three Phase Motor Design 3-Phase 30 HP Nameplate RPM 3 560/2 945 No of Speeds 1 Voltage 190V 208-230/460V 380V Full Load Amps 79.0-68.0/34.0 A 284TS Frame Usable @ 208V Yes Hz 60/50 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes Motor Shaft Design Keyed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 300.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
