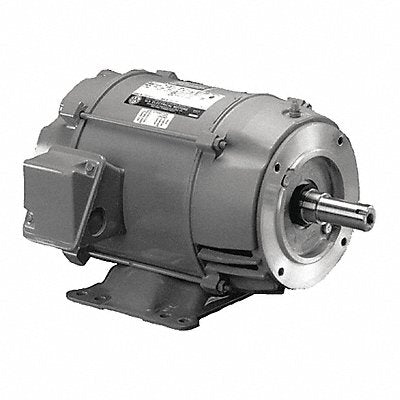

Motor 3PH 30HP 1200 575V EFF 93.6
Manufacturer: U.S. MOTORS
Jahnda Part Number: 14W08K
EA
Description
Motor Three Phase Motor Design 3-Phase 30 HP Nameplate RPM 1 185 No of Speeds 1 Voltage 575V Full Load Amps 28.0 A 326T Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F NEMA Design A Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Motor Shaft Design Keyed Removable Base Regreasable Bearings Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 415.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
