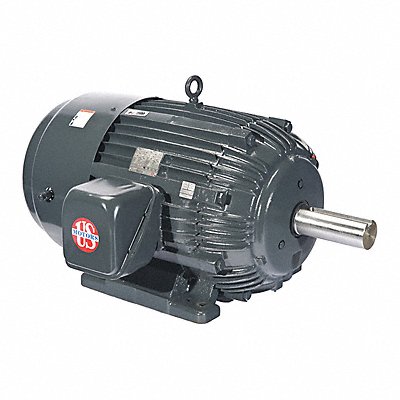

Motor 3PH 300HP 3600 2300V EFF 93
Manufacturer: U.S. MOTORS
Jahnda Part Number: 88U99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 300 HP Nameplate RPM 3 557 Frame 449TS Voltage 2 300V 60 Hz Hz Three Phase Full Load Amps 67.0 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 93 Percent CSA
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2750.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
