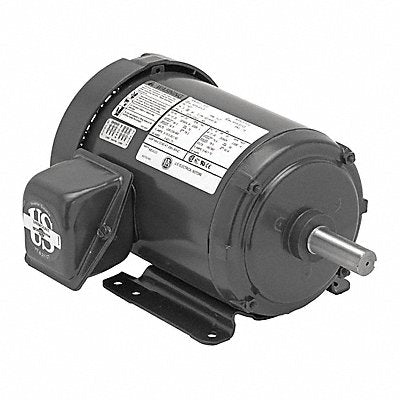

Motor 3PH 3/4HP 1800 230/460V EFF 82.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 31X99N
EA
Description
Motor 3-Phase Totally Enclosed Motor Enclosure Design 3/4 HP Nameplate RPM 1 765 Frame 56C Voltage 230V 460V 60 Hz Hz Three Phase Full Load Amps 2.6/1.3 A Horizontal Footless Motor Mounting Type Ins. Class F Motor Service Factor 1.25 Motor Frame Material Aluminum Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 81.5 Percent CSA Certified UR
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 32.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
