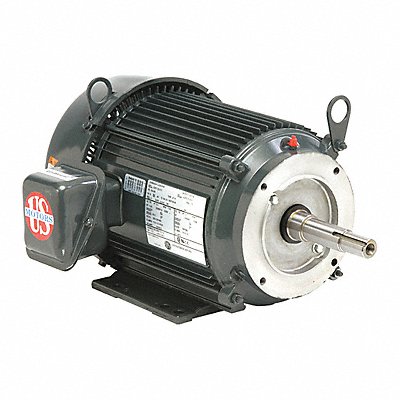

Motor 3PH 3/4HP 1800 208-230/460V VFD VT

Motor 3PH 3/4HP 1800 208-230/460V VFD VT Three Phase Motor Design 3-Phase 3/4 HP No of Speeds 1 Voltage 208-230/460V Full Load Amps 2.8-2.7/1.3 A 56 Frame Torque 174.5 ft-lb Max Speed 1 725 RPM Usable @ 208V Yes 60 Hz Hz Max Operating Frequency 60 Hz Motor Service Factor 1.15 Ins. Class F Max Ambient Temp 40 Degrees C NEMA Design B Motor Shaft Rotation CCW Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Mounting Type C Face Base Inverter Rated Yes
