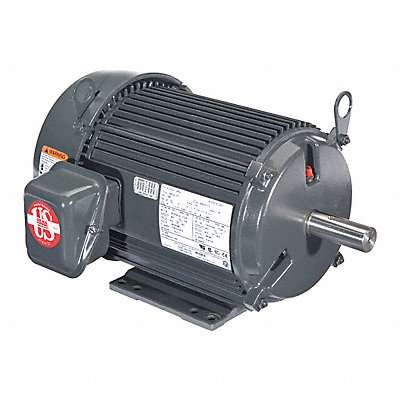

Motor 3PH 3/1.5HP 2 SPD 460V EFF 78.5

Motor Three Phase Motor Design 3-Phase 1 1/2 3 HP Nameplate RPM 1 720/865 No of Speeds 2 Voltage 460V Full Load Amps 4.1 A 184T Frame Hz 60 Hz Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Motor Shaft Rotation CW/CCW Motor Mounting Type Horizontal Footed Motor Mounting Position Horizontal Motor Shaft Design Keyed Removable Base Regreasable Bearings Motor Frame Material Aluminum
