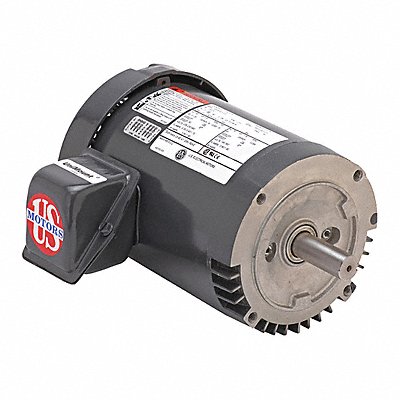

Motor 3PH 2HP 3600 208-230/460V Steel Fr
Manufacturer: U.S. MOTORS
Jahnda Part Number: 27X99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 2 HP Nameplate RPM 3 450 Frame 56H Voltage 208V 230V 460V 60 Hz Hz Three Phase Full Load Amps 5.1-5.1/2.6 A Rigid Base Motor Mounting Type Motor Thermal Protection None Ins. Class B Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CCW Motor Shaft Rotation Nominal Efficiency 85.5 Percent CE CSA Certified UL Listed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 37.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
