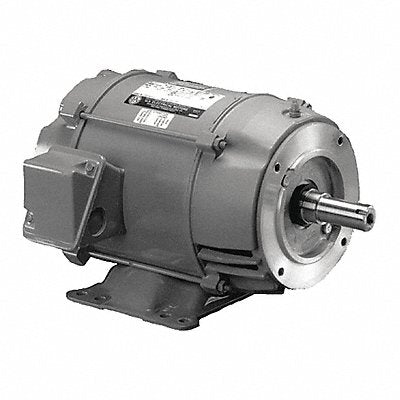

Motor 3PH 2HP 3600 208-230/460V EFF 85.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 22Q08K
EA
Description
Motor Bearing Protection Double Shields Body Dia 6.5 in Bolt Circle Dia 5 7/8 in Duty Cycle Continuous Frame 56J Hz 60/50 Full Load Amps 5.4-5.1/2.6 Full Load Amps @ 50Hz 5.4-5.1/2.6 HP 2 HP @ 50Hz 2 Ins. Class B Length Less Shaft 10 13/16 in Max Ambient Temp 40 Degrees C Max SF Amps 6.6-6.1/3.1 Motor Application Commercial Duty Pumping Motor Bearings Ball Motor Design 3-Phase Motor Enclosure Design Totally Enclosed Fan-Cooled
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 36.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
