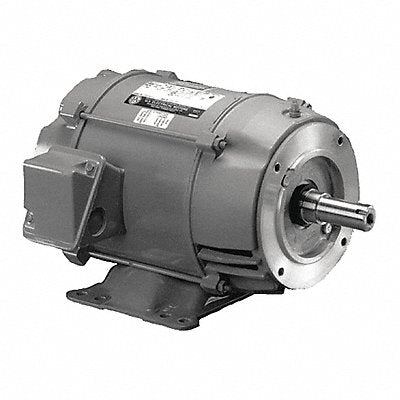

Motor 3PH 2HP 1800 230/460V ODP VFD
Manufacturer: U.S. MOTORS
Jahnda Part Number: 75U99N
EA
Description
Motor 3-Phase Open Dripproof Motor Enclosure Design 2 HP Nameplate RPM 1 745 Frame 145T Voltage 230V 460V 60 Hz Hz Three Phase Full Load Amps 5.6/2.8 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F Nominal Efficiency 86.5 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 35.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
