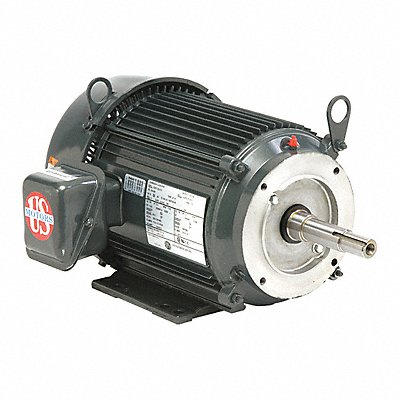

Motor 3PH 2HP 1800 230/460V ACCU-Torq
Manufacturer: U.S. MOTORS
Jahnda Part Number: 59B68K
EA
Description
Motor 3PH 2HP 1800 230/460V ACCU-Torq Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 750 rpm No of Speeds 1 Voltage 230/460V Full Load Amps 5.6/2.8 A 145 Frame Torque 543 ft-lb Max Speed 1 750 RPM 60 Hz Hz Max Operating Frequency 60 Hz Motor Service Factor 1 Ins. Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous NEMA Design A Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Mounting Type Horizontal Footed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 35.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
