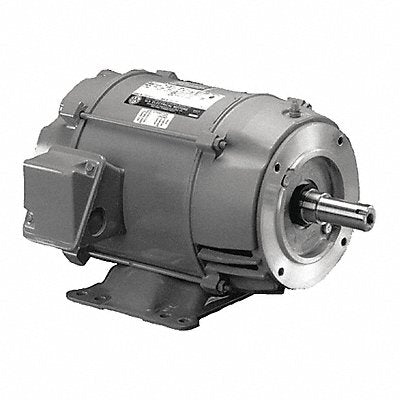

Motor 3PH 2HP 1200 208-230/460V ODP JM

Close Coupled Pump Bearing Protection Shaft Shields Body Dia 8 in Bolt Circle Dia 5 7/8 in Conduit Box Position F1 Duty Cycle Continuous Frame 184JM Hz 60/50 Full Load Amps 6.4-6.3/3.1 Height 9 9/16 in HP 2 Ins. Class F Length Less Shaft 11 3/4 in Max Ambient Temp 40 Degrees C Max SF Amps 7.2-6.8/3.4 Motor Application Damp Dusty or Dirty Environments Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft
