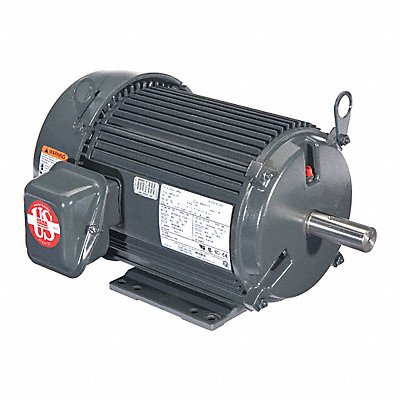

Motor 3PH 25HP 3600 208-230/460V TEFC JM
Manufacturer: U.S. MOTORS
Jahnda Part Number: 14X99N
EA
Description
Close Coupled Pump Bearing Protection Shaft Shields Body Dia 13.4 in Bolt Circle Dia 15/16 in Conduit Box Position F1 Duty Cycle Continuous Frame 284 Hz 60/50 Full Load Amps 65.0-57.0/28.4 Height 13 11/16 in HP 25 Ins. Class F Length Less Shaft 23 7/8 in Max Ambient Temp 40 Degrees C Max SF Amps 0-74.0/37.0 Motor Application Centrifugal Pump Motor Design 3-Phase Motor Efficiency Group Premium Efficient Motor Enclosure Design Totally Enclosed Motor Frame Material Cast Iron
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 280.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
