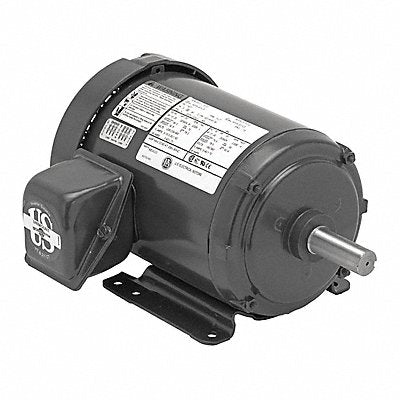

Motor 3PH 20HP 3600 230/460V TE VFD VT
Manufacturer: U.S. MOTORS
Jahnda Part Number: 01X99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 20 HP Nameplate RPM 3 535 Frame 256T Voltage 230V 460V 60 Hz Hz Three Phase Full Load Amps 46.0/23.1 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Aluminum Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 91 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 222.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
