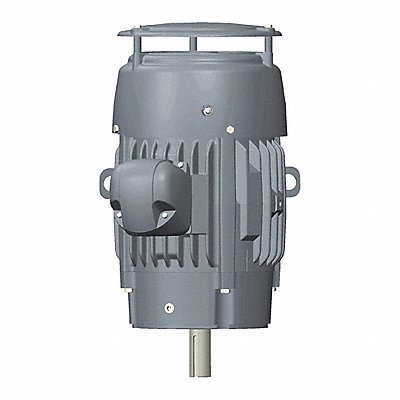

Motor 3PH 20HP 3600 208-230/460V EFF 91
Manufacturer: U.S. MOTORS
Jahnda Part Number: 99W99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 20 HP Nameplate RPM 3 535/2 900 Frame 256TC Voltage 190V 208-230/460V 380V 60/50 Hz Hz Three Phase Full Load Amps 53.0-46.0/23.1 A Horizontal Footless Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Motor Frame Material Steel Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 91 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 340.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
