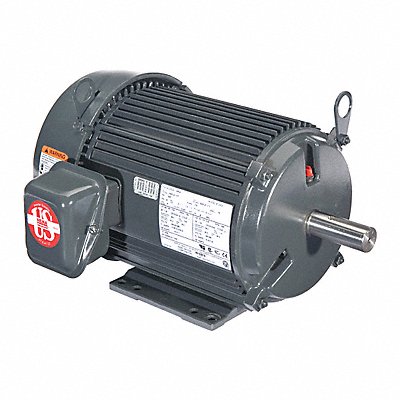

Motor 3PH 20HP 1800 575V TE JP
Manufacturer: U.S. MOTORS
Jahnda Part Number: 38U99N
EA
Description
Close Coupled Pump Bearing Protection Shaft Shields Body Dia 13.4 in Conduit Box Position F1 Duty Cycle Continuous Frame 256 Hz 60 Hz Full Load Amps 19.0 Height 13 3/8 in HP 20 Ins. Class F Length Less Shaft 20 1/8 in Max Ambient Temp 40 Degrees C Max SF Amps 24.1 Motor Application Centrifugal Pump Motor Design 3-Phase Motor Efficiency Group Premium Efficient Motor Enclosure Design Totally Enclosed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 230.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
