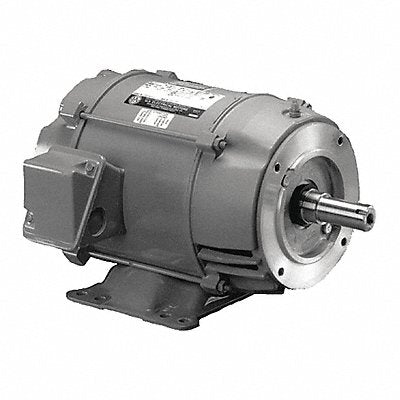

Motor 3PH 20HP 1800 200V ODP JP

Close Coupled Pump Bearing Protection Shaft Shields Body Dia 11.1 in Bolt Circle Dia 7 1/4 in Conduit Box Position F1 Duty Cycle Continuous Frame 256JP Hz 60 Hz Full Load Amps 54.0 Height 9 9/16 in HP 20 Ins. Class F Length Less Shaft 14 1/4 in Max Ambient Temp 40 Degrees C Max SF Amps 62.0 Motor Application Damp Dusty or Dirty Environments Specific Requirements of Centrifugal Pumps where the Pump Impeller is Mounted Directly on the Motor Shaft Motor Bearings Ball
