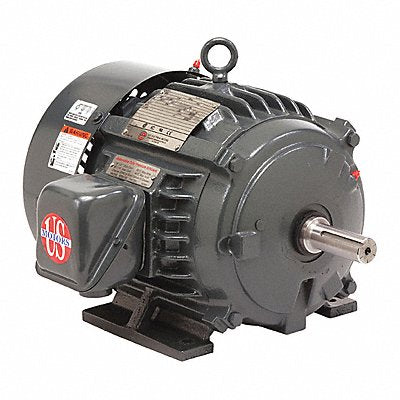

Motor 3PH 200HP 3600 460V TE HD TS
Manufacturer: U.S. MOTORS
Jahnda Part Number: 29U99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 200 HP Nameplate RPM 3 575 Frame 447TS Voltage 460V 60/50 Hz Hz Three Phase Full Load Amps 217.0 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Ball Motor Bearings Motor Frame Material Cast Iron Max Ambient Temp 104 Degrees F Nominal Efficiency 96.2 Percent CSA Certified ENERGY cURus
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2025.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
