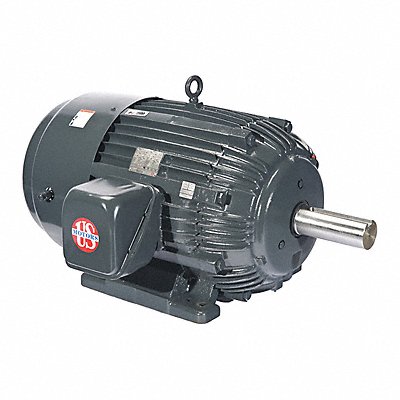

Motor 3PH 200HP 3600 2300/4000V EFF 93
Manufacturer: U.S. MOTORS
Jahnda Part Number: 89W99N
EA
Description
Motor 3-Phase Totally Enclosed Fan-Cooled Motor Enclosure Design 200 HP Nameplate RPM 3 560 Frame 449TS Voltage 2 300/4 000V 60 Hz Hz Three Phase Full Load Amps 45.0/25.7 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 93 Percent CSA
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 2650.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
