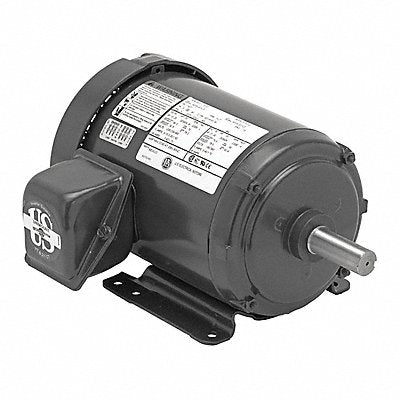

Motor 3PH 2/1.3HP 2 SPD 460V EFF 77
Manufacturer: U.S. MOTORS
Jahnda Part Number: 21U99N
EA
Description
Motor 3-Phase Totally Enclosed Motor Enclosure Design 1 1/3 2 HP Nameplate RPM 1 770/1 175 Frame 184T Voltage 460V 60 Hz Hz Three Phase Full Load Amps 3.4 A Horizontal Footed Motor Mounting Type Ins. Class F Motor Service Factor 1.25 Motor Frame Material Aluminum Max Ambient Temp 104 Degrees F CW/CCW Motor Shaft Rotation Nominal Efficiency 77 Percent CSA Certified UR
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 85.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
