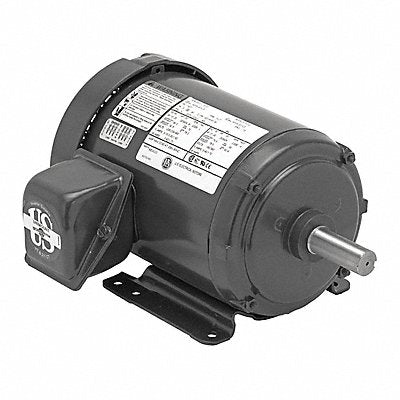

Motor 3PH 1HP 3600 230/460V EFF 81.5
Manufacturer: U.S. MOTORS
Jahnda Part Number: 83W99N
EA
Description
Close Coupled Pump Bearing Protection Shaft Shields Body Dia 7.3 in Bolt Circle Dia 5/16 in Conduit Box Position F1 Duty Cycle Continuous Frame 143 Hz 60 Hz Full Load Amps 2.7/1.4 HP 1 Ins. Class F Length Less Shaft 10 in Max Ambient Temp 40 Degrees C Max SF Amps 3.2/1.6 Motor Application Centrifugal Pump Motor Design 3-Phase Motor Efficiency Group Premium Efficient Motor Enclosure Design Totally Enclosed
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 30.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
