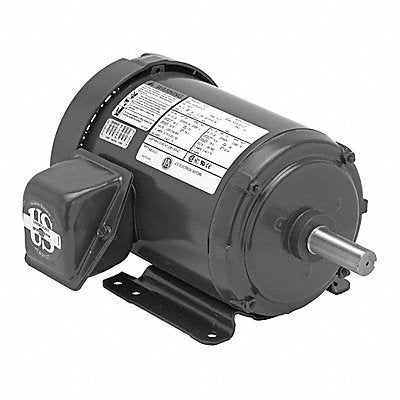

Motor 3PH 1HP 3600 208-230/460V Steel Fr
Manufacturer: U.S. MOTORS
Jahnda Part Number: 10A29K
EA
Description
Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 208V 230V 460V Full Load Amps 3.4-3.2/1.6 A 56 Frame Usable @ 208V Yes Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Ins. Class B NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCW Motor Mounting Type Rigid Base Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 27.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
