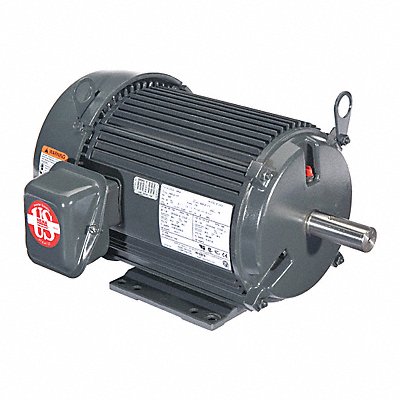

Motor 3PH 1HP 208-230/460V WD C-face
Manufacturer: U.S. MOTORS
Jahnda Part Number: 46E09K
EA
Description
Three Phase Motor Three Phase Motor Design 3-Phase 1 HP No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 3.4-3.3/1.8 A 143 Frame Usable @ 208V Yes 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C NEMA Design B Motor Shaft Rotation CCW Motor Enclosure Design Totally Enclosed Non-Ventilated Motor Mounting Type Face Motor Frame Material Stainless Steel Finish White Epoxy Paint
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 26.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
