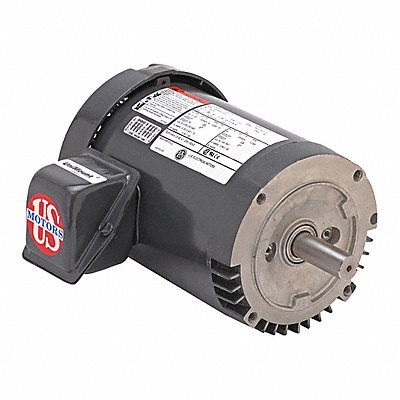

Motor 3PH 1HP 1800 575V Steel Fr 56C
Manufacturer: U.S. MOTORS
Jahnda Part Number: 67G78K
EA
Description
Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 800 Voltage 575V Full Load Amps 1.3 A 56C Frame Hz 60 Hz Motor Service Factor 1.25 Max Ambient Temp 104 Degrees F Ins. Class B F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type C Face Footed Motor Frame Material Steel
Product Specification
| Characteristic | Value |
|---|---|
| Weight (lb.) | 30.0 lb |
| Items per Unit of Issue | 1 |
| Country of Origin (subject to change) | Mexico |
